Battery Electric Fencing Energisers

A battery energiser provides an effective animal control solution for remote locations, or where there is no mains power source available. Gallagher battery powered energisers provide the reliability required for these situations. Battery powered energisers are available in 9V and 12V depending the size and type of electric fence installation required. Some 9V and all 12V energisers can also be combined with a solar power source to provide free, environmentally friendly energy for your set-up.

Battery Energisers At A Glance	Battery	Stored Energy (Joules)	Voltage with 500Ohm (Volts)	Max. length without growth (Km)	Max. length slight growth (Km)	No. of earth stakes
B11	9V/12V	0.11J	2000V	1Km	--	1 x 0.5m
Paddock Master	9V/12V	0.19J	2200V	2Km	0.5Km	1 x 0.5m
B40	9V/12V	0.40J	2700V	3Km	1.5Km	1 x 0.5m
B50	9V/12V	0.5J	2900V	4Km	2Km	1 x 0.5m
BX50	9V/12V	0.5J	2900V	4Km	2Km	1 x 0.5m
B80	12V	0.82J	3800V	7Km	3Km	2 x 1.0m
B180	12V	1.3J	4400V	13Km	5Km	3 x 1.0m
B280	12V	2.2J	4500V	20Km	8Km	4 x 1.0m
B100	12V	0.8J	3500V	7Km	3Km	2 x 1.0m
B200	12V	1.45J	4300V	13Km	5Km	3 x 1.0m
B300	12V	2.6J	5800V	20Km	8Km	4 x 1.0m

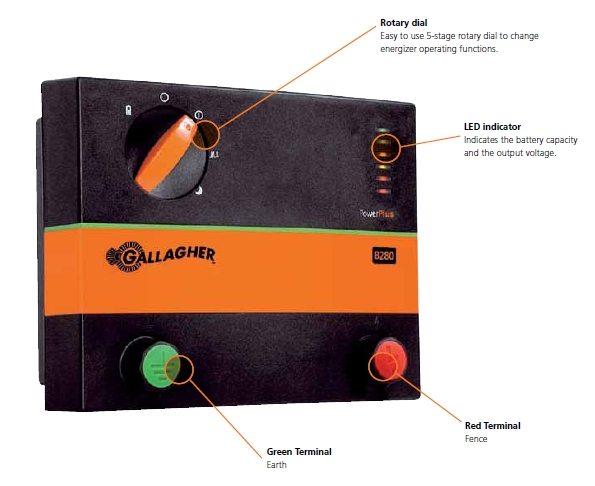

Featured Energiser - The B180/B280

A powerful storage battery powered energiser suitable for all kinds of animals. The control unit is separate from the battery and a carrying handle is provided that clips to the back of the unit to assist portability or to enable the unit to be hung from a wire.

LED Indicator

This LED indicator shows you the output voltage at a glance. If only the red lights are on, you know straight away that there is a problem with your fencing. If the green lights are on, you can rest assured that all is well. Fast, simple and up to date.

M700 Energiser Detail Rotary dial positions

Battery Check: The battery charge level is displayed on the bar graph. The number of LED's illuminated provides an indication of remaining battery charge.
Off: When the dial is in the vertical position, the energiser is OFF.
Full Power: The energiser operates at full power.
Random: The pulse interval is varied randomly, maintaining effective stock control. Random mode will extend battery life by up to 3 times. (Not featured on the B80)
Night Save: The energiser automatically adjusts to a slower pulse rate as night approaches using light level detection. Night Save will extend the life of the battery by 50%. Suitable for animals that are less active at night. (Not featured on the B80)

Battery Energisers

B11 Battery Energiser

Robust battery-unit on self supporting stand with carry handle for simple installation and portability. Features 4 battery save options that can be selected using the external switch. 12V battery leads included. Built-in indicator light flashes with each pulse.

Specifications:
Stored energy (Joules): 0.11J
Voltage with 500Ohm: 2000V
Max length without growth: 1km
Max length slight growth: --
No. of earth stakes: 1 x 0.5m

Paddock Master Battery Energiser

Feature-packed battery operated energiser suitable for fences up to 2Km (without vegetation growth). Very easy to use. It operates on a 9V disposable battery or a 12V rechargeable battery. The device warns you when the battery is almost flat. 55Ah battery included.

Specifications:
Stored energy (Joules): 0.19J
Voltage with 500Ohm: 2200V
Max length without growth: 2km
Max length slight growth: 0.5km
No. of earth stakes: 1 x 0.5m

B40 Battery Energiser

The world's most energy efficient battery energizer! Only 10mA use in Random/ half power/night safe mode. This means secure animal safety and ultra low battery consumption. Earth stake and battery 120Ah included.

Specifications:
Stored energy (Joules): 0.4J
Voltage with 500Ohm: 2700V
Max length without growth: 3km
Max length slight growth: 1.5km
No. of earth stakes: 1 x 0.5m

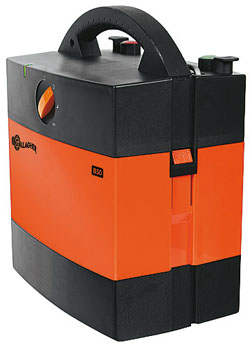

B50 Battery Energiser

Powerful device supplied by a 9 V disposable or 12 V storage battery. The LED shows red if the current in the fencing is too low. 3 settings: full power, night mode and random.

Specifications:
Stored energy (Joules): 0.5J
Voltage with 500Ohm: 2900V
Max length without growth: 4km
Max length slight growth: 2km
No. of earth stakes: 1 x 0.5m

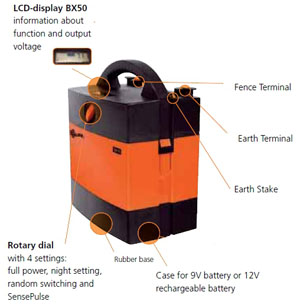

BX50 Battery Energiser

Powerful and very complete equipment offering the latest technology. Powered by a 9 V disposable or 12 V storage battery. With LCD display for current information on the operation of the equipment and its output voltage.With battery indicator. 4 settings: full power, night mode, random and Sense Pulse. Auto-setting for 9 V disposable battery or 12 V storage battery. With connector for solar panel. Includes earth stake.

Specifications:
Stored energy (Joules): 0.5J
Voltage with 500Ohm: 2900V
Max length without growth: 4km
Max length slight growth: 2km
No. of earth stakes: 1 x 0.5m

B80 Battery Energiser

Powerful storage battery powered energiser for fencing up to 7km. Suitable for all kinds of animals. Easy to operate by turning a switch. 3 settings: off, full power and battery charge level check. LEDs for monitoring battery and output voltage: green is OK. Includes handle for carrying and mounting. Solar power option available.

Specifications:
Stored energy (Joules): 0.82J
Voltage with 500Ohm: 3800V
Max length without growth: 7km
Max length slight growth: 3km
No. of earth stakes: 2 x 1m

B180 Battery Energiser

Powerful storage-battery powered energiser for fencing up to 12 km. Suitable for all kinds of animals. With integral battery-saving options. Easy to operate by turning a switch. 5 settings: OFF - battery monitor - full power - random - night mode. LEDs for monitoring battery and output voltage: green is OK. Includes handle for carrying and mounting. Solar power option available.

Specifications:
Stored energy (Joules): 1.3J
Voltage with 500Ohm: 4400V
Max length without growth: 13km
Max length slight growth: 5km
No. of earth stakes: 3 x 1m

B280 Battery Energiser

Powerful storage-battery powered energiser for fencing up to 20 km. Suitable for all kinds of animals. With integral battery-saving options. Easy to operate by turning a switch. 5 settings: OFF - battery monitor - full power - random - night mode. LEDs for monitoring battery and output voltage: green is OK. Includes handle for carrying and mounting. Solar power option available.

Specifications:
Stored energy (Joules): 2.2J
Voltage with 500Ohm: 4500V
Max length without growth: 20km
Max length slight growth: 8km
No. of earth stakes: 4 x 1m

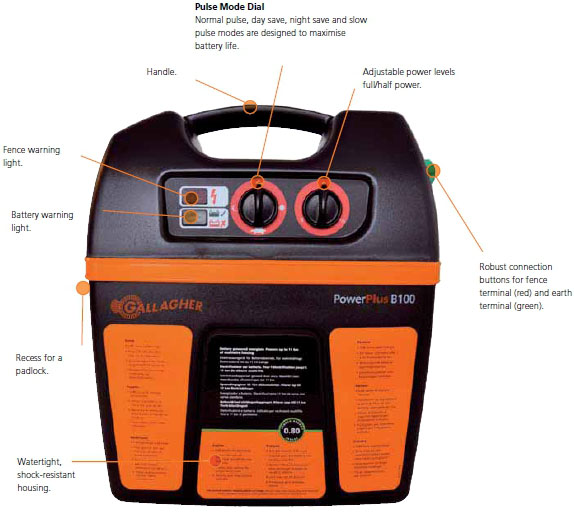

Featured Energiser - The B100

A complete 12V battery energiser with space for the battery, all in one carry case. The electronics are safely protected from the battery compartment. The energiser can be protected against theft with padlocks on either side. You can use the security kit for protecting your energiser against theft which anchors the energiser to the ground.

B100 Energiser Detail

Pulse Mode Dial Settings

The pulse rate is continuous.
The pulse rate is halved, saving costs.
Daytime mode
Night time mode

Features

Powerful
Very easy to use
Long life span
Value for money
Suitable for use with solar panels
Extremely reliable

B100 Battery Energiser

Powerful battery energizer suitable for 9V and 12V battery use. Highly visible low battery and fence voltage indicator lights. Four easy to use Battery Save Options which can extend battery life by up to 12 months. Ideal in combination with solar energy.

Specifications:
Stored energy (Joules): 0.8J
Voltage with 500Ohm: 3500V
Max length without growth: 7km
Max length slight growth: 3km
No. of earth stakes: 2 x 1m

B200 Battery Energiser

Powerful battery energiser suitable for 12V use. Highly visible low battery and fence voltage indicator lights. Four easy to use Battery Save Options which can extend battery life by up to 12 months. Advised battery: Gallagher 12V 85 Ah (not included). Ideal in combination with solar energy.

Specifications:
Stored energy (Joules): 1.45J
Voltage with 500Ohm: 4300V
Max length without growth: 13km
Max length slight growth: 5km
No. of earth stakes: 3 x 1m

B300 Battery Energiser

Powerful battery energiser suitable for 9 and 12V use. Highly visible low battery and fence voltage indicator lights. Four easy to use Battery Save Options which can extend battery life by up to 12 months. Advised battery: Gallagher 12V 85 Ah (not included). Ideal in combination with solar energy.
